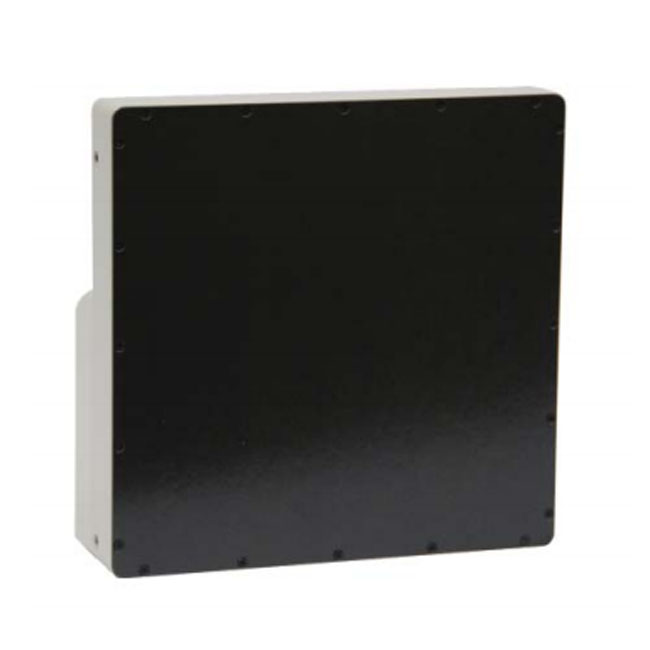

Flat Panel Detector PaxScan 1313DXT

PaxScan 1313DXT imagers provide industry leading CBCT and Panoramic image quality for mid-size dental applications. Varex Imaging’s amorphous silicon based detectors are the gold standard for CBCT in medical, dental and industrial applications.

Amorphous silicon brings key advantages unmatched by other technologies, including:

- radiation hardness > 1MRad

- widest input energy range

- immunity from single photon events in the substrate

- excellent low dose performance

- proven 3-D soft-tissue capability

Varex Imaging’s extensive dental product line allows the OEM to easily integrate multiple panel sizes. The Virtual CP software interface is common across all the panels and the entire product line is off ered with Gigabit Ethernet.

Technical Specifications

Receptor Type ................................. Amorphous Silicon

Conversion Screen . . . . . . . . . . . . . . . . . . . . Direct Deposit CsI, DRZ Plus

Pixel Area Total . . . . . . . . . . . . . . . . . . . 13.0 x 13.0 cm (5.12 x 5.12 in.)

Pixel Matrix Total . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1024 x 1,024 (1 x 1) 512 x 512 (2 x 2)

Active Pixel Matrix for CsI . . . . . . . . . . . . . . . . . . . . . . . . . 1014 x 1014 (1 x 1) 508 x 508 (2 x 2)

Pixel Pitch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127 μm²

Limiting Resolution .................................... 3.94 lp/mm

MTF, X-Ray . . . . . . . . . . . . . . . . . . . . . . >48% @ 1 lp/mm (1 x 1), CsI screen

Energy Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 -160 kVp

Fill Factor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57%

Image Capture ...................................... Pleora Gigabit

Scan Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Progressive

A/D Conversion ............................................. 16-bit

Frame Rate (Workstation dependent) . . . . . . . . . . . . . . . . . 30 fps (1 x 1) 60 fps (2 x 2)

Data Output ...................................... Gigabit Ethernet

Exposure Control . . . . . . . . Opto Coupled, External Sync, Expose OK
